BP Series Regulators

These products are mainly used in small LPG installations (domestic or commercial) as second-stage regulators. All these regulators can be used in certain installations with natural gas, synthetic natural gas (SNG), air, nitrogen and other non-corrosive gases.

BP1803FV models are equipped with a full safety relief valve which prevents the outlet pressure from exceeding a defined value (typically 140 mbar – 2 psig) in the event of regulator failure or breakage.
BP2205G regulators are provided with a rotating special device called “GIRO” which protects 4 vent holes and allows the regulator to be installed in all positions.
BP2205 and BP2205G regulators are equipped with a limited capacity relief valve (LRV).
BP2303R models are commonly used in industrial applications which require a fine pressure adjustment.
BP24F regulators are mainly used in large power LPG, Natural Gas or SNG installations (domestic networks, commercial, agriculture or industrial) as final stage or intermediate stage regulators. They can also be used with air, nitrogen and other non-aggressive gases.

Technical Product Table

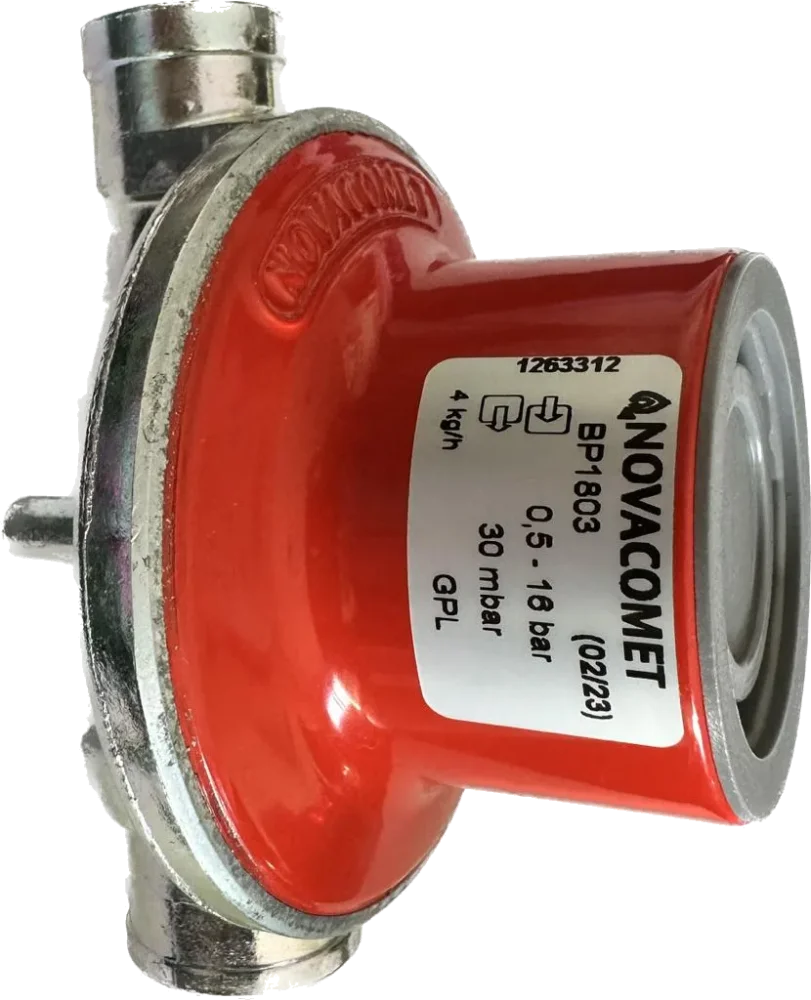

BP1803

Code	Diameter	Inlet pressure	Outlet pressure	Capacity
NC-0600	1/4″ x 3/8″	0.5 – 16 bar	30 (25–38) mbar	4 kg/h
NC-0600A	1/4″ x 3/8″	0.5 – 16 bar	50 mbar	4 kg/h
NC-0605	1/4″ x 3/8″	0.5 – 4 bar	37 mbar	5 kg/h
NC-0606	1/4″ x 3/8″	0.5 – 4 bar	30 (20–70) mbar	5 kg/h

BP1813

Code	Diameter	Inlet pressure	Outlet pressure	Capacity
NC-0780A	1/4″ x 3/8″	1 – 16 bar	20–90 mbar	4 kg/h
NC-0780B	1/4″ x 3/8″	1 – 16 bar	5–300 mbar	4 kg/h
NC-0780C	1/4″ x 3/8″	1 – 16 bar	20–300 mbar	4 kg/h

BP2205

Code	Diameter	Inlet pressure	Outlet pressure	Capacity
NC-0860	1/4″ x 1/2″	0.5 – 4 bar	30 (25–40) mbar	10 kg/h
NC-0950	1/2″ x 1/2″	0.5 – 4 bar	30 (25–40) mbar	12 kg/h

BP2303

Code	Diameter	Inlet pressure	Outlet pressure	Capacity
NC-1050BA	1/2″ x 3/4″	0.5 – 7.5 bar	30 (25–40) mbar	20 kg/h
NC-1050AA	1/2″ x 3/4″	0.5 – 4 bar	30 (27–36) mbar	30 kg/h
NC-1052AB	1/2″ x 3/4″	0.5 – 4 bar	50 (45–60) mbar	30 kg/h

BP2303R

Code	Diameter	Inlet pressure	Outlet pressure	Capacity
NC-1070BA	1/2″ x 3/4″	0.5 – 7.5 bar	20–300 mbar	20 kg/h
NC-1070	1/2″ x 3/4″	0.5 – 4 bar	20–300 mbar	30 kg/h

BP2403

Code	Diameter	Inlet pressure	Outlet pressure	Capacity
NC-1100CA	3/4″ x 1″	0.5 – 4 bar	30 (24–41) mbar	50 kg/h

BP2403R

Code	Diameter	Inlet pressure	Outlet pressure	Capacity
NC-1110CA	3/4″ x 1″	0.4 – 4 bar	10–200 mbar	40 kg/h
NC-1111CD	3/4″ x 1″	0.5 – 4 bar	20–300 mbar	20–50 kg/h
NC-1112CA	3/4″ x 1″	0.5 – 4 bar	100–300 mbar	50 kg/h

BP24F

Code	Diameter	Inlet pressure	Outlet pressure	Capacity
NC-1200CA	1″ x 1 1/4″	0.5 – 4 bar	30 (25–43) mbar	70 kg/h
