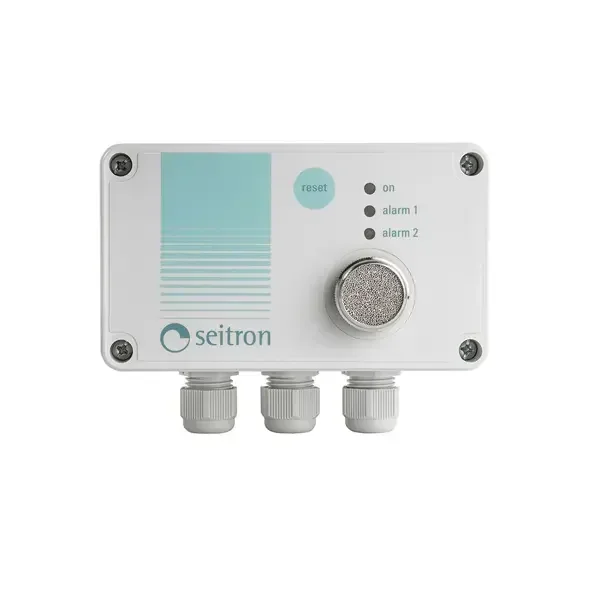

LPG Panel Sensor – RGI GP1 MSX2

The LPG gas leak detector is equipped with an internal sensor and can be connected to a second remote sensor (SGA-- or SGI--). In addition to having 2 relay outputs, it is equipped with a manual reset button. The device can be installed in non-ATEX classified areas.

Compatible Remote Sensors

SGAGPL: For lpg in an IP30 enclosure.
SGIGP1 / SGIGP1M: For lpg in an IP54 enclosure.

Technical Specifications

Power supply: : 230 V~ −15% / +10%, 50/60 Hz
Power consumption: : 4 VA
Sensor type: : SnO₂ solid-state sensor (semiconductor)
Sensor service life: : 5 years
Filter: : Stainless steel
Output relay 1 (RL1): : 4 (2) A @ 250 V~ SPDT
Output relay 2 (RL2): : 4 (2) A @ 250 V~ SPST
Solenoid valve relay delay: : Approximately 15 seconds
Detected gas: : LPG
Alarm threshold: : 5%…20% LEL
Operation indicator: : Green LED
Alarm 1 indicator: : Red LED
Alarm 2 indicator: : Red LED
Button: : Manual reset
Protection rating: : IP54
Back-up battery: : 7.5 V ±20%; code: ACC SGB 12
Operating temperature: : 0…40 °C
Storage temperature: : −10…+50 °C
Humidity limits: : 20%…80% RH, non-condensing
Dimensions (W × H × D): : 134 × 79 × 62 mm
Weight: : Approximately 550 g
